Colt Firearms Collector





1940-1947

 'Small Arms Division' Version

Colt: The "Woodsman" Model Hand Book

Automatic Pistol, Caliber .22 Target model

Colt's Patent Fire Arms Mfg. Co.



According to Ogle, this is a later 'Small Arms'  'Woodsman' Model brochure,

The early versions showed an unmarked (No 'The Woodsman') on the side

 of the barrel, and this version shows the 'The Woodsman' marked on the

side of the barrel  of this .22 Target model in the hand book. The last page

 shows the Colt 'Small Arms Division'  name, dating it to the 1940s.



Dimensions unopened are 8 1/8 x 4 1/2 in.; 8 pages.

Ogle's book 'Woodsman' page is shown below showing all versions







Colt 1940's the woodsman hand book cover

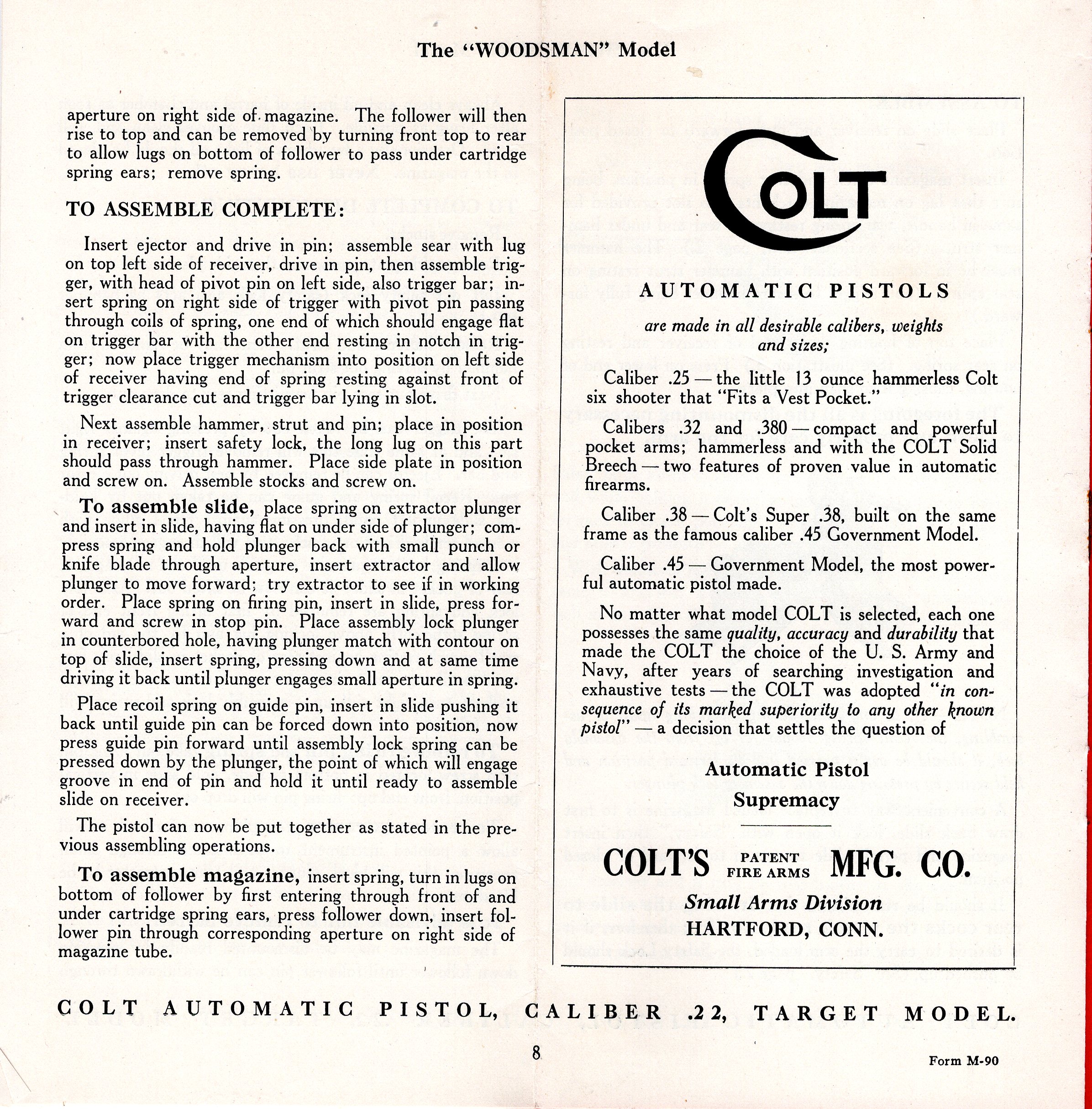

Colt 1940's the woodsman hand book marked small arms division



Showing the 'Small Arms Division' on the last page

which dates this version to 1940-1947



Colt 1940's the woodsman hand book with pistol marked 'the woodsman' on the side of the barrell



The side of the barrel shows 'The Woodsman' imprint

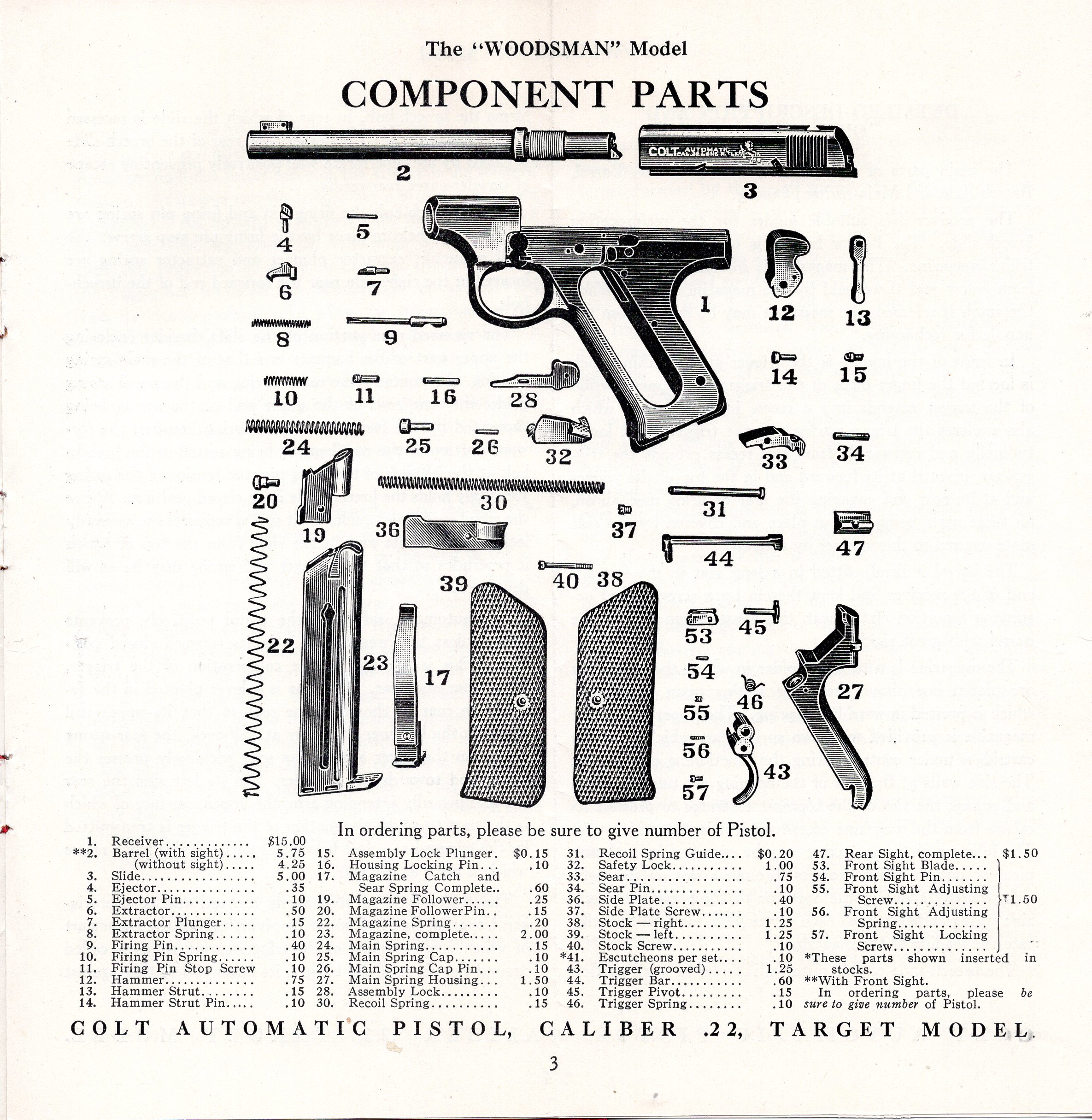

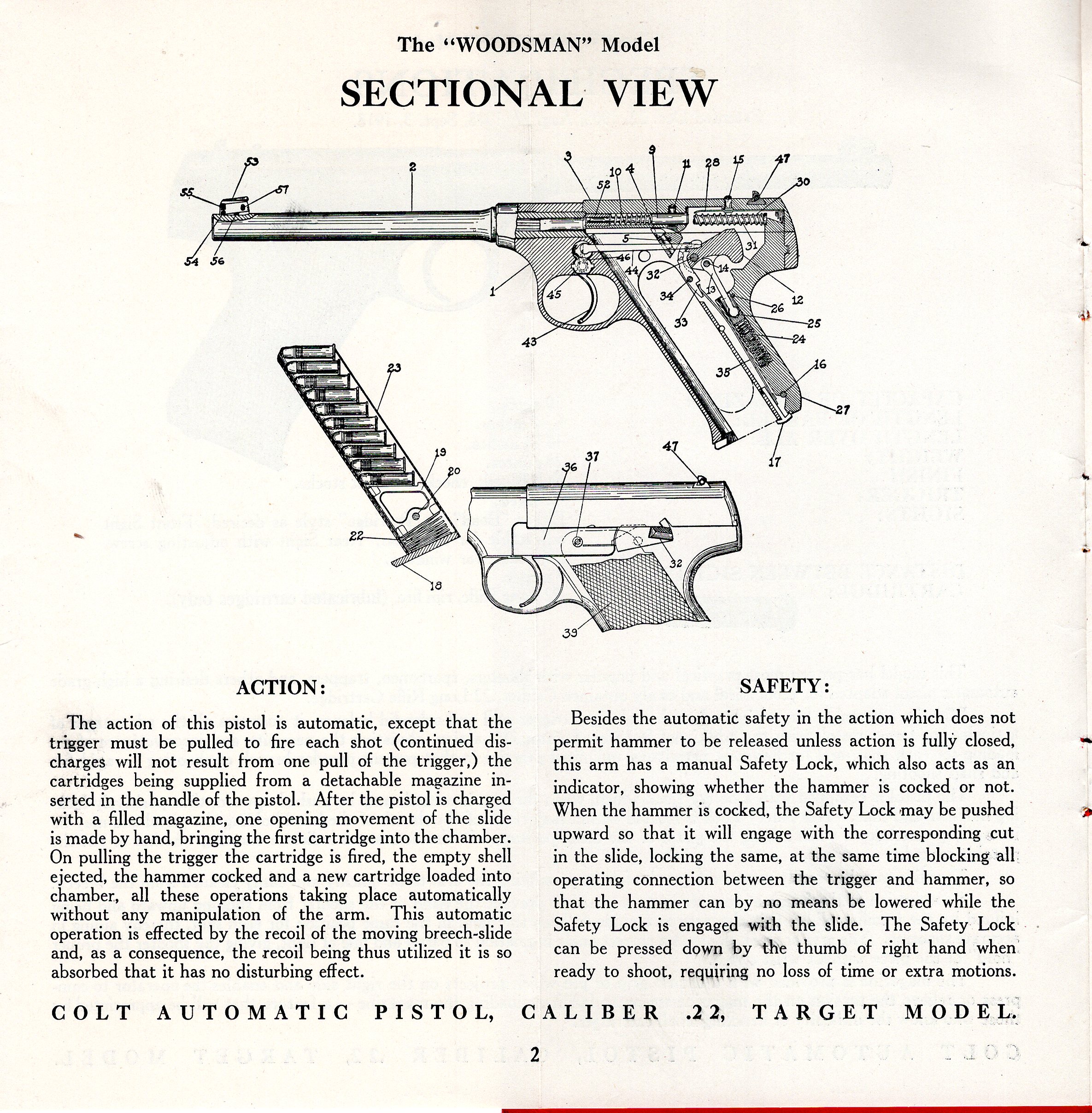

Colt 1940's the woodsman hand book page 2  Colt 1940's the woodsman hand book page 3

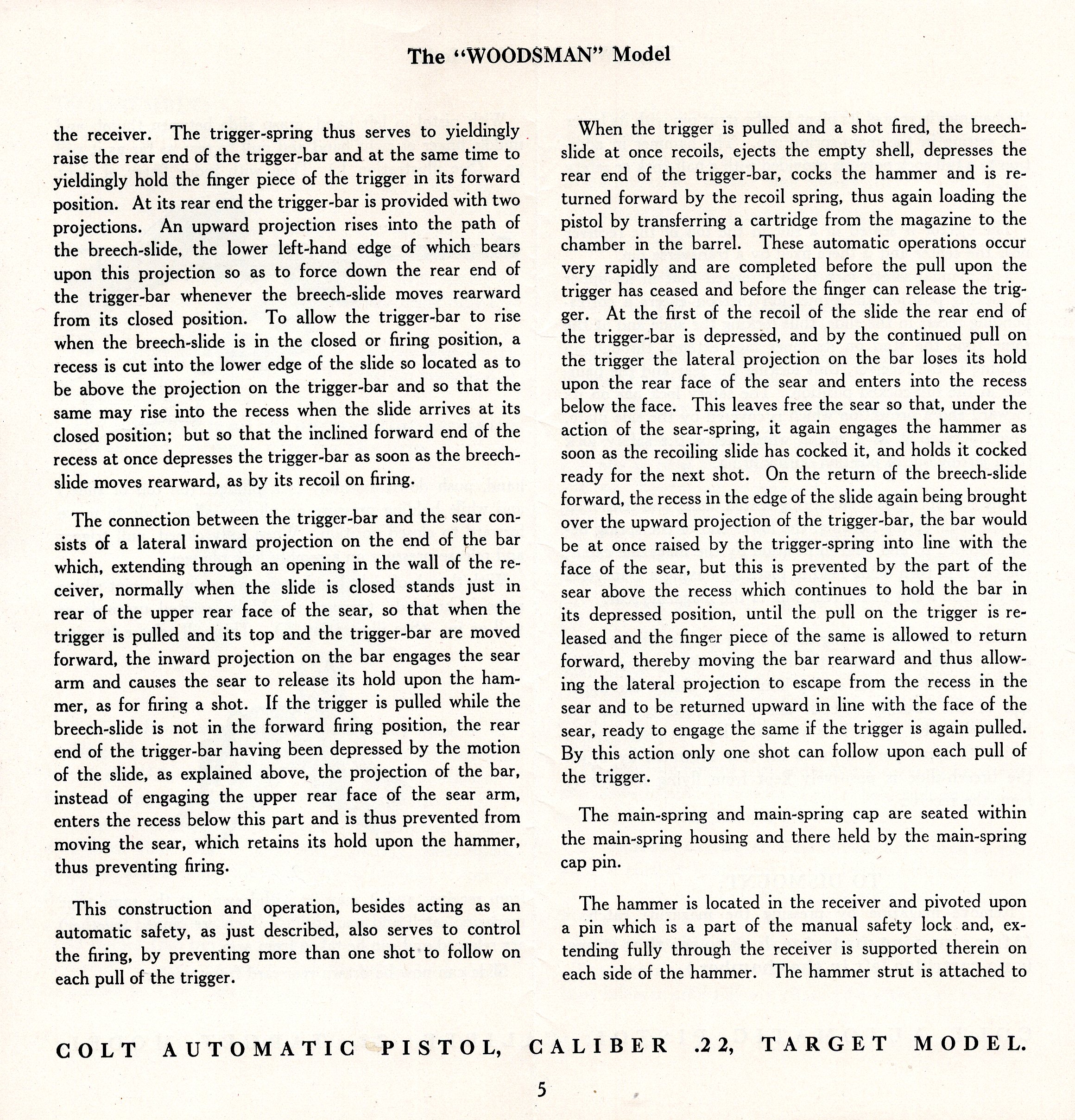

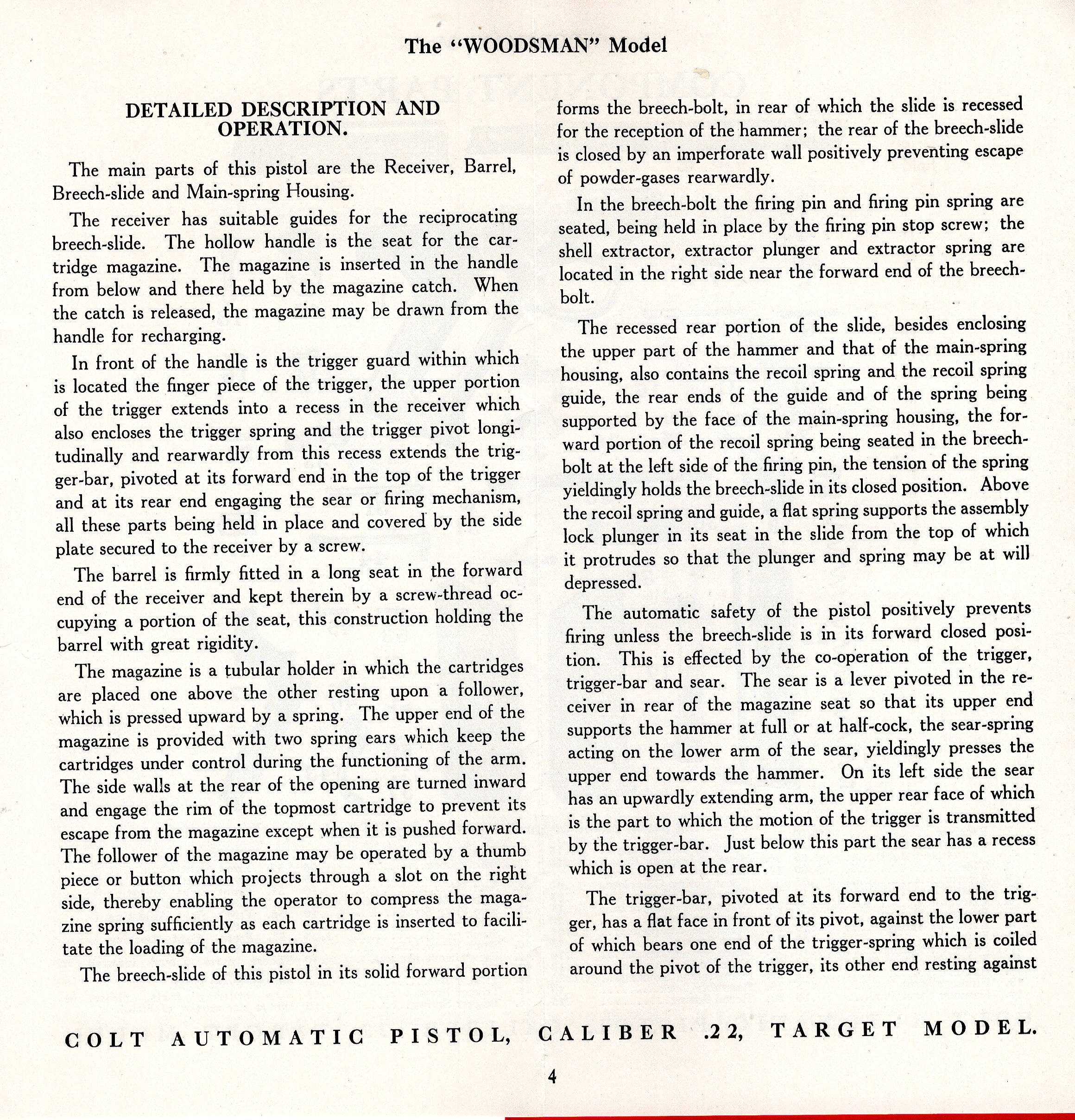

Colt 1940's the woodsman hand book page 4  Colt 1940's the woodsman hand book page 5

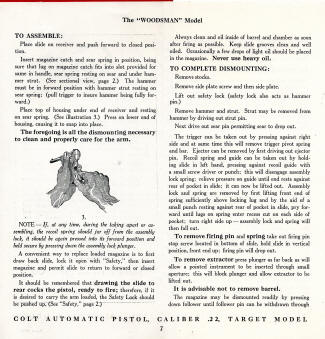

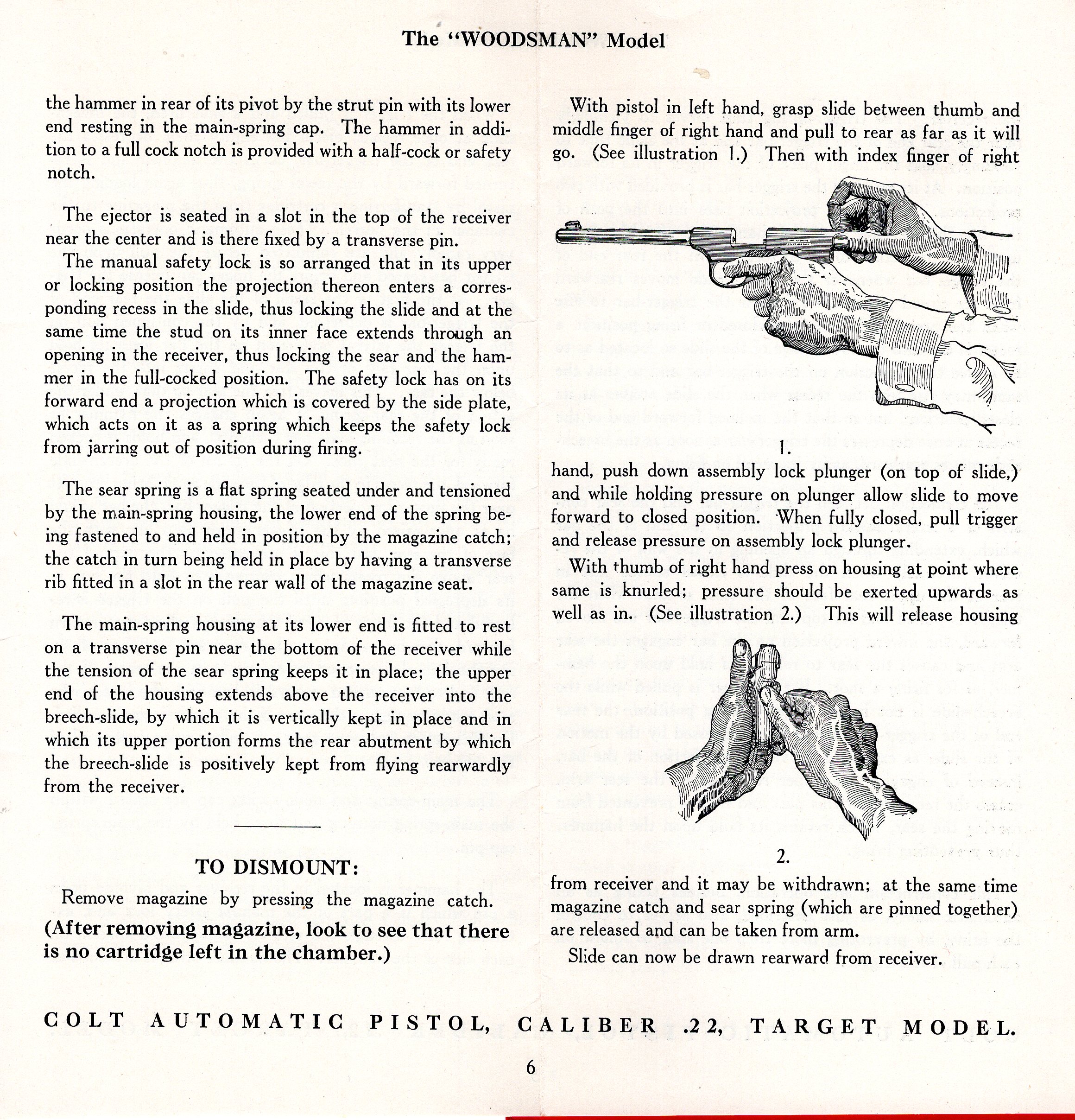

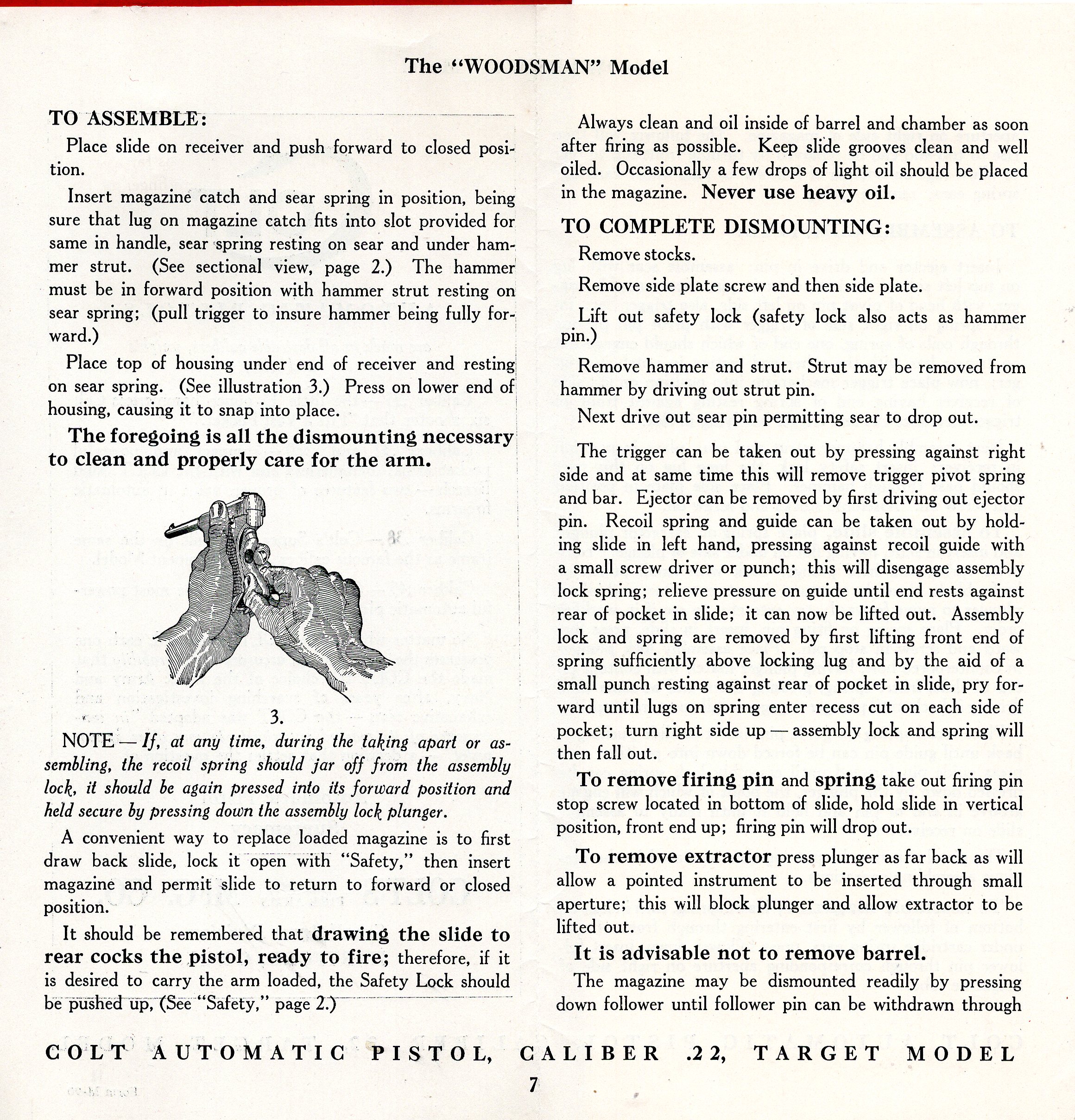

Colt 1940's the woodsman hand book page 6  Colt 1940's the woodsman hand book page 7
