Colt Firearms Collector



1959

Colt AR-15 Automatic Military Rifle .223 Caliber

Contractor's Operation Manual

Published by:

Colt's Patent Fire Arms Manufacturing Co., INC



A full scan of this historically important early Colt manual before the AR-15 in .223 caliber was produced for the civilian market.  The Armalite Company's AR-15 military rifle rights were sold to Colt in 1959.  Colt produced this 'Contractor's' manual the same year and described the AR-15 in .223 caliber as a 'Military Rifle'.

A rare 22 page document with diagrams in the development of the AR-15/M16 rifle.

See the Colt AR-15 Military Rifle brochure by Colt in 1959



1959 Colt automatic military rifle manual cover

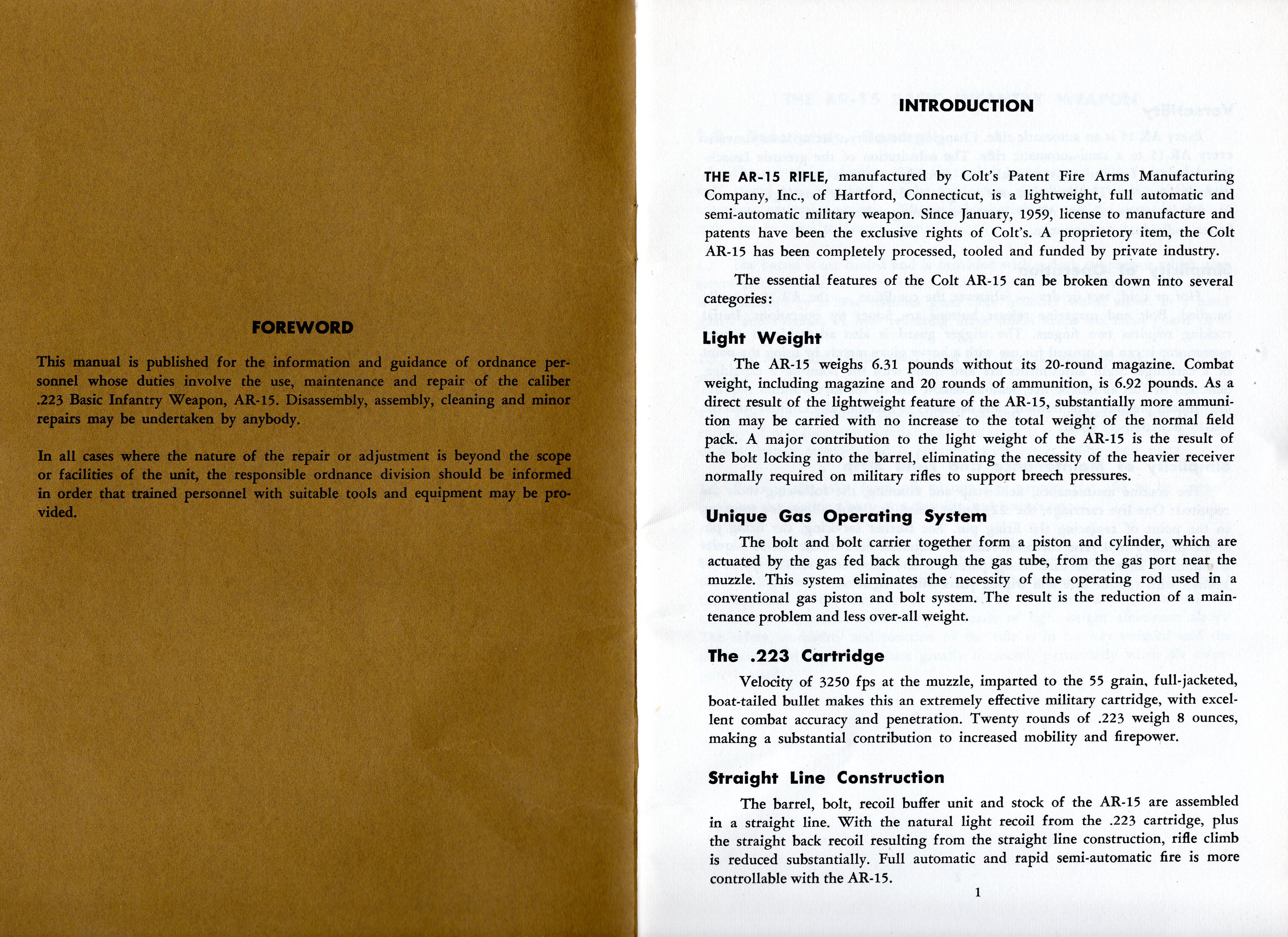

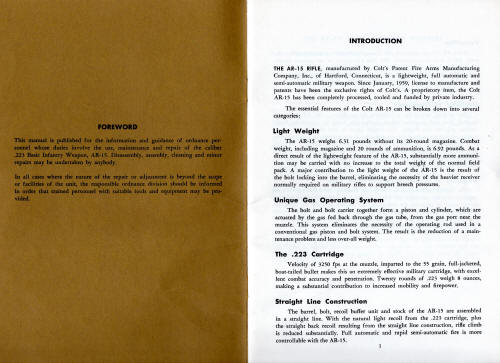

1959 Colt automatic military rifle manual page 1

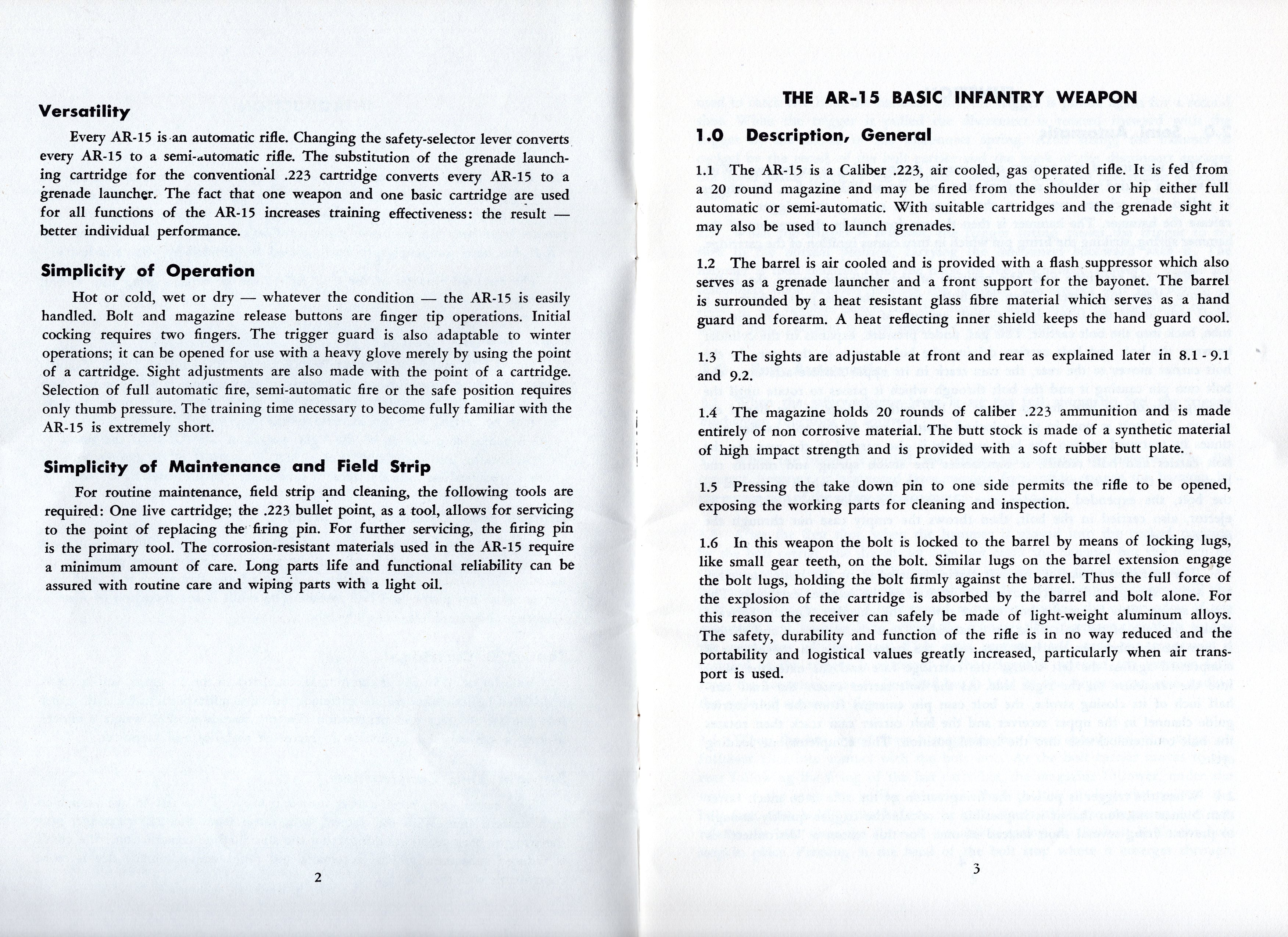

1959 Colt automatic military rifle manual page 2 - 3

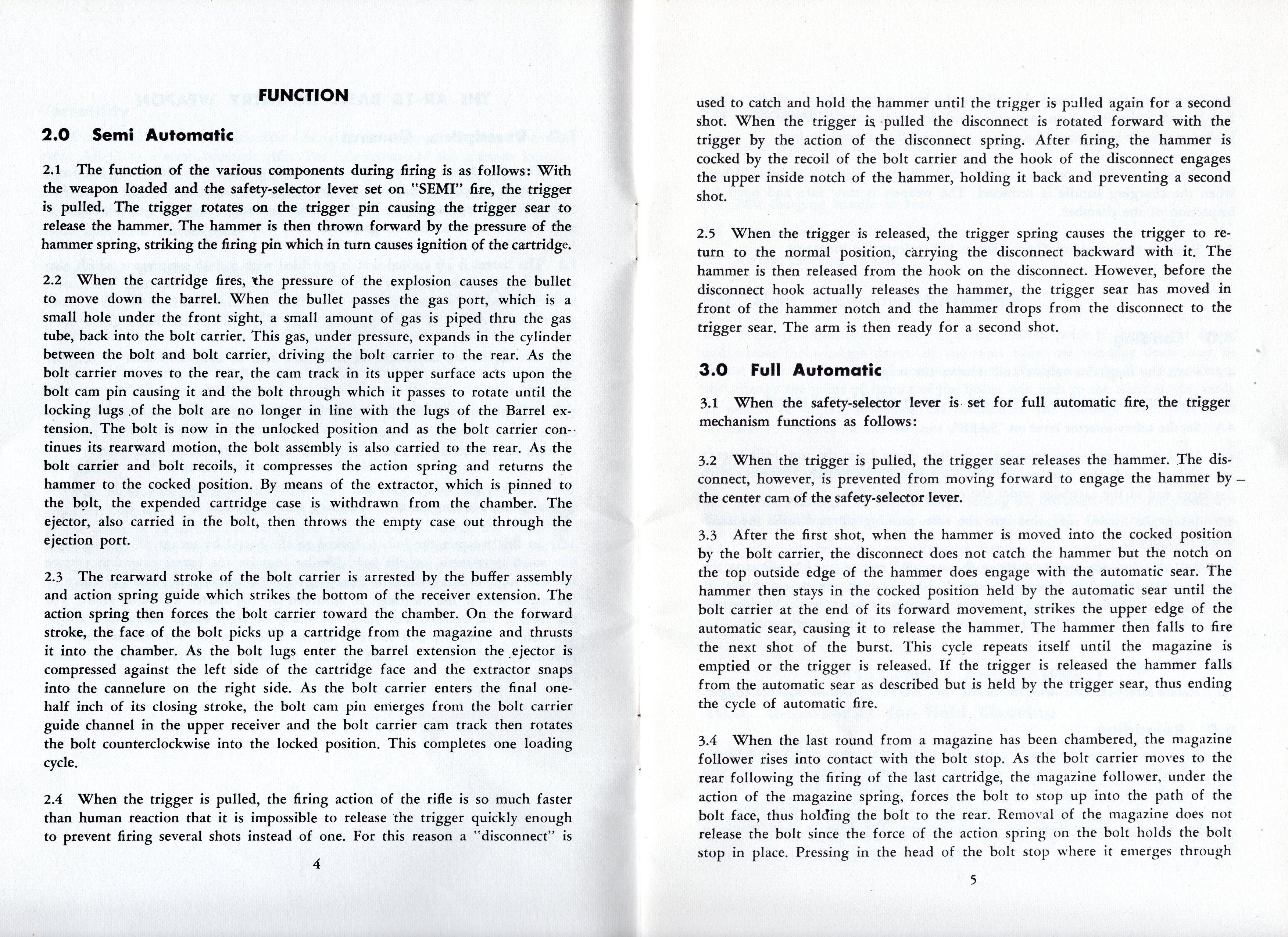

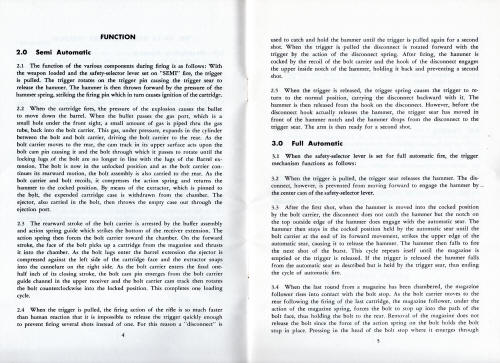

1959 Colt automatic military rifle manual page 3 - 4

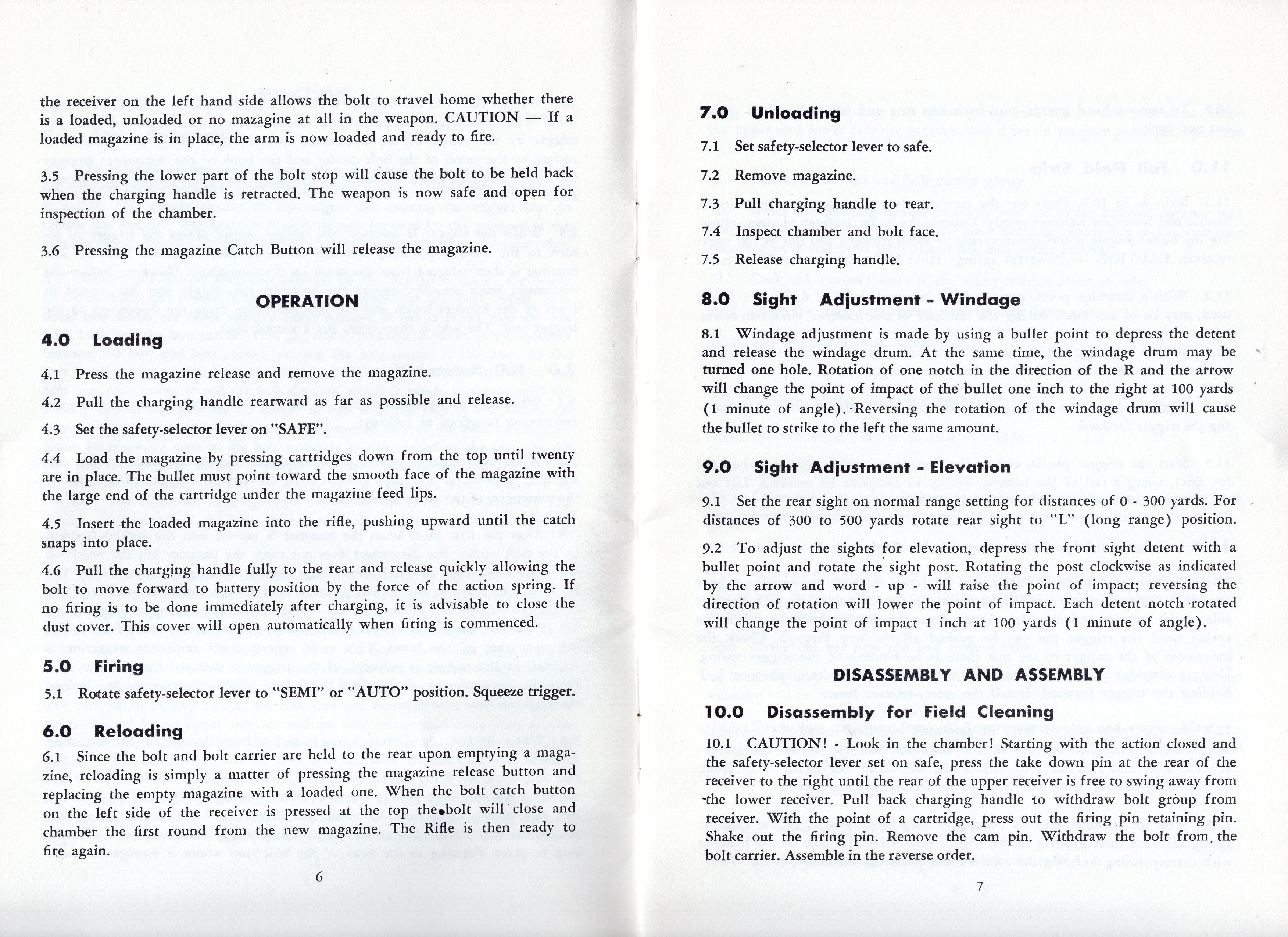

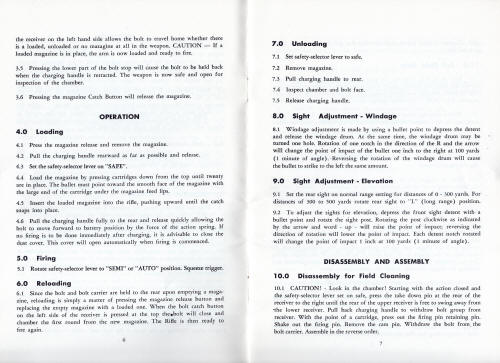

1959 Colt automatic military rifle manual page 5 - 6

1959 Colt automatic military rifle manual page 7 - 8

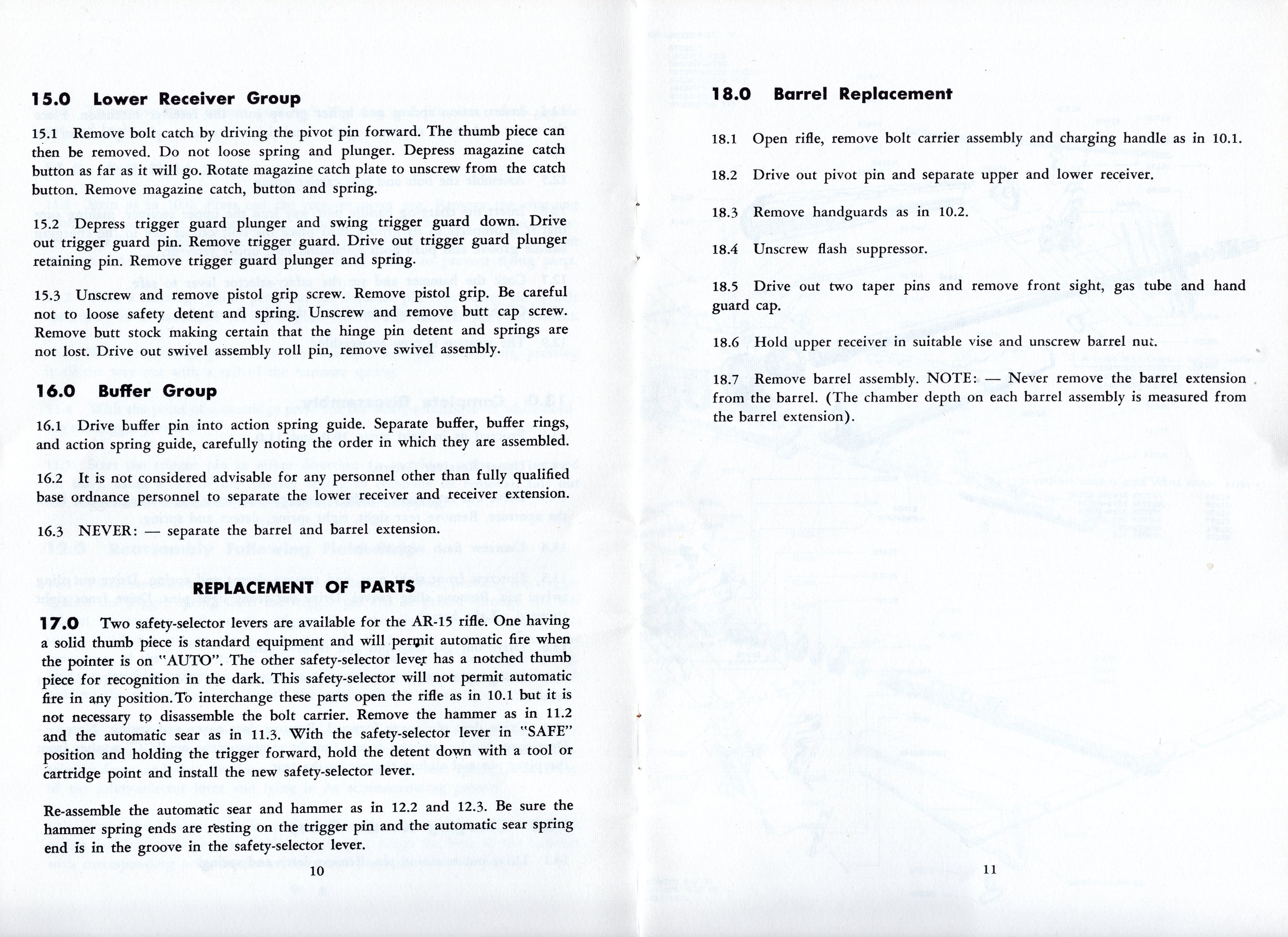

1959 Colt automatic military rifle manual page 9 - 10

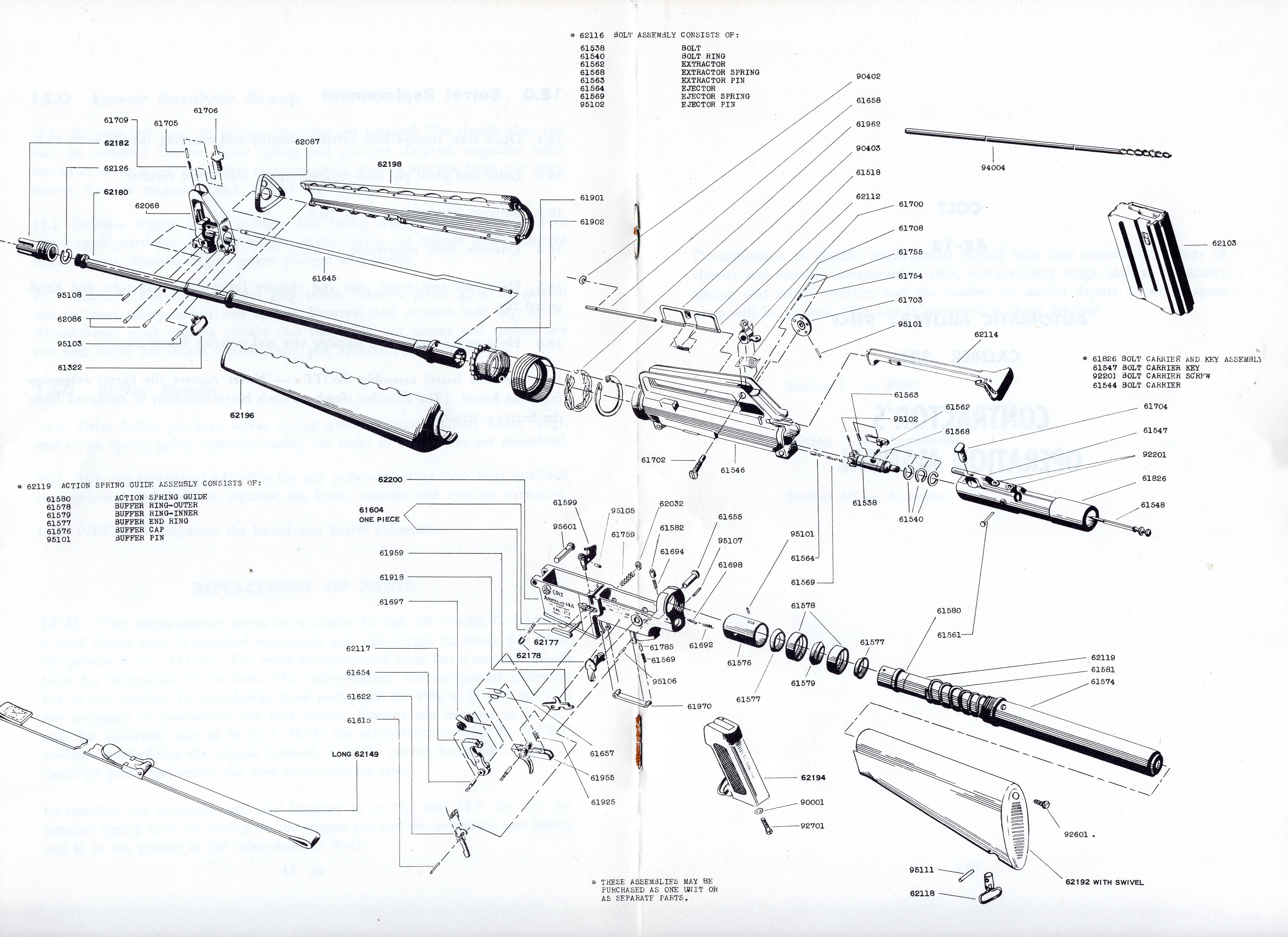

1959 Colt automatic military rifle manual page 11 diagram

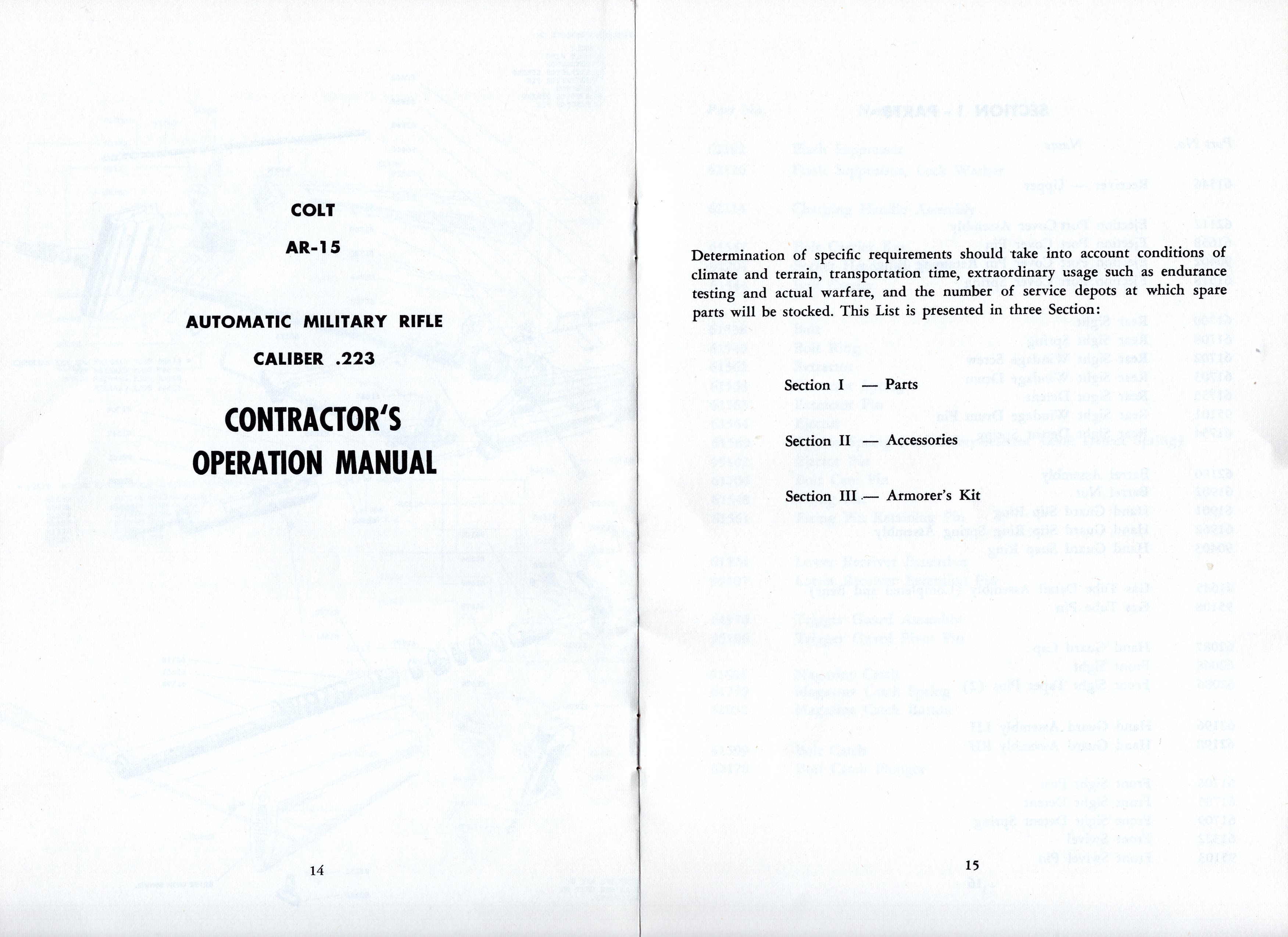

1959 Colt automatic military rifle manual page 14 - 15

1959 Colt automatic military rifle manual page 16 - 17

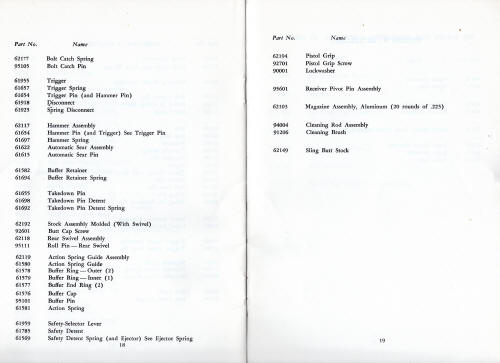

1959 Colt automatic military rifle manual page 19 - 20

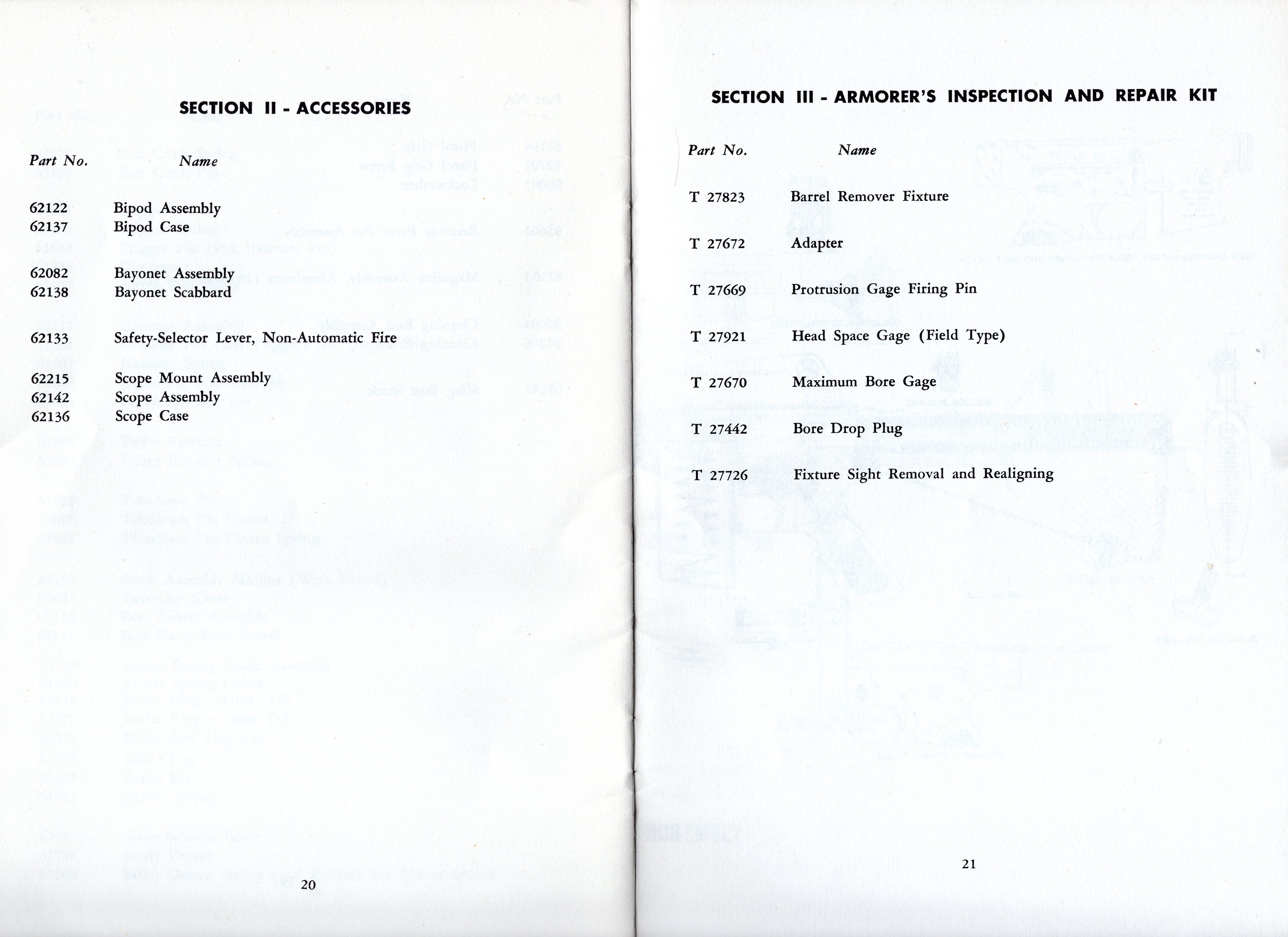

1959 Colt automatic military rifle manual page 20 - 21

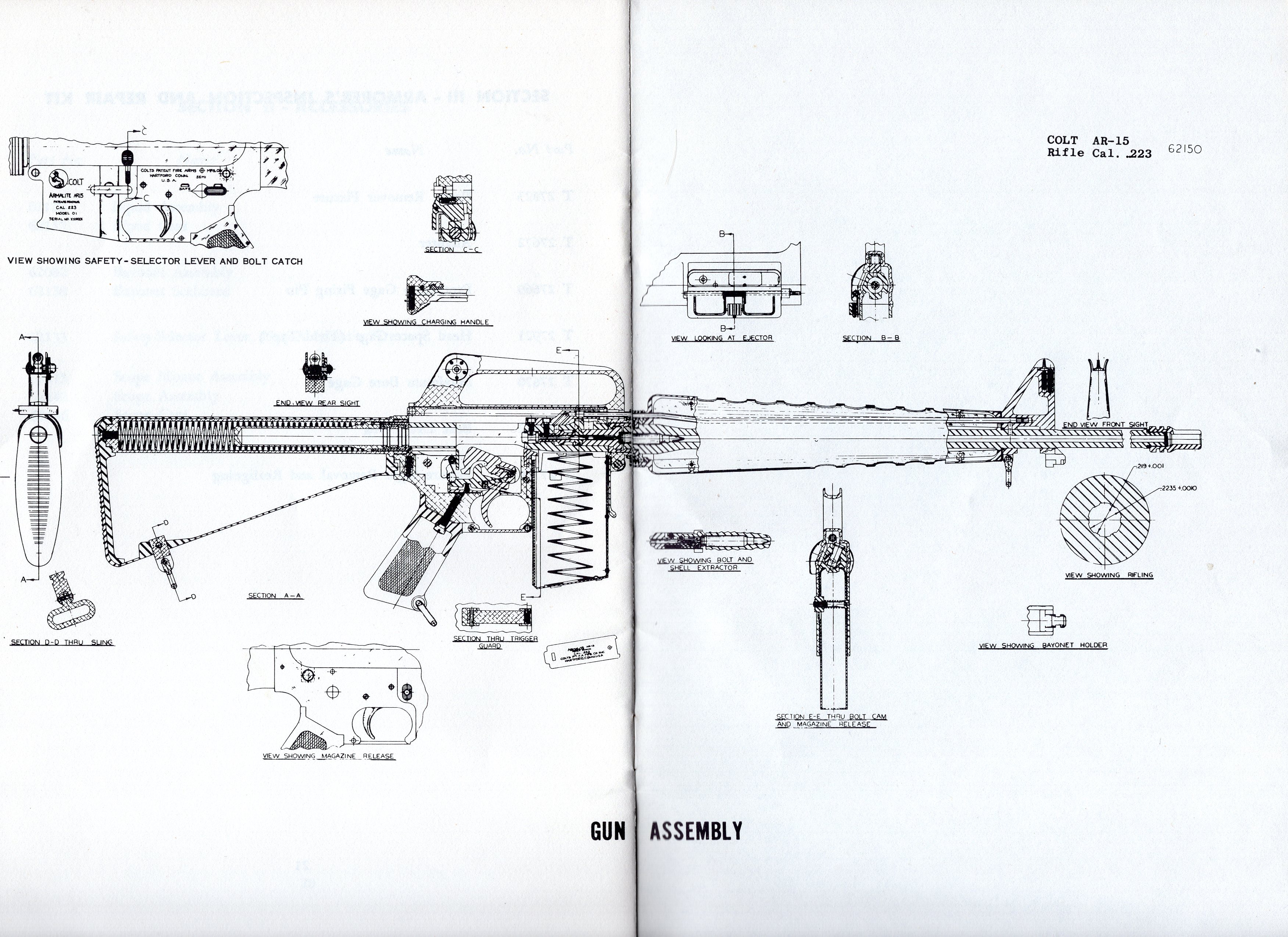

1959 Colt automatic military rifle manual page 22 diagram
